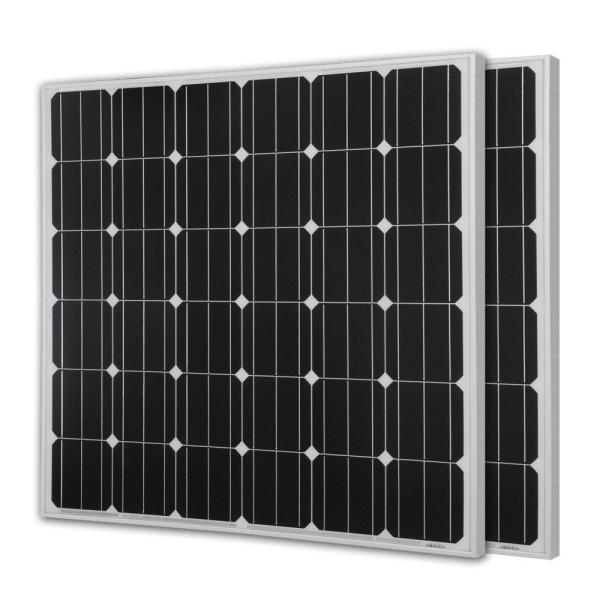

Monocrystalline Solar Panels 260W 250W For Home Solar Energy System

Product Categories

Shenzhen Shine Solar Co., Ltd.

Contact Now

Name: Monocrystalline Solar Panels 260W 250W For Home Solar Energy System
Brand: SHINE or OEM
Price: 0.3 USD

Brand Name : SHINE or OEM

Model Number : SN-M250W

Certification : CE，RoHS, TUV, IEC, SGS, ISO

Place of Origin : China

MOQ : 1

Price : USD0.3~0.4/wp

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 15000 pcs per month

Delivery Time : 15 working days

Packaging Details : single box or 25 pcs per pallet

cells : 60 pcs 156mm Taiwan mono cells

Voltage : 30V

Junction box : IP65 waterproof with diodes

Cable : 90cm UV resistance

Color : sliver or black

Contact Now

240-290Watt Monocrystalline Solar Panel
Characteristics	SN-M240	SN-M250	SN-M260	SN-M270	SN-M280	SN-M290
Maximum Power(Pmax)	240Wp	250Wp	260Wp	270Wp	280Wp	290Wp
Optimum Operating Voltage/Vmp	30.0V	30.0V	30.0V	30.0V	30.0V	30.0V
Optimum Operating Current/Imp	8.00A	8.33A	8.66A	9.00A	9.33A	9.67A
Open Circuit Voltage /Voc	36.0V	36.0V	36.0V	36.0V	36.0V	36.0V
Short Circuit Current /Isc	8.60A	8.93A	9.53A	9.90A	10.26A	10.64A
Module Efficiency	16.4%	15.30%	15.90%	16.50%	17.14%	17.75%
Weight	17Kg	19Kg	19Kg	19Kg	19Kg	19Kg
Numbers of cells	60(6*10)	60(6*10)	60(6*10)	60(6*10)	60(6*10)	60(6*10)
Cell dimension(mm)	156*156	156*156	156*156	156*156	156*156	156*156
Dimensions(mm)	148099035	165099040
Standard test condition	Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

Mechanical Characteristics
Power Tolerance	±3 %
Maximum Series Fuse Rating	15A
Maximum System Voltage	1000V DC
Operating Module Temperature	-40°C to +80°C
Frame Material	Clear Anodized aluminum Frame
Thickness of glass	3.2mm tempered glass
Frame	Anodized aluminum alloy
Laminating material	EVA
Backsheet material	TPT
Junction box	Ip65
